MAIN FEATURES

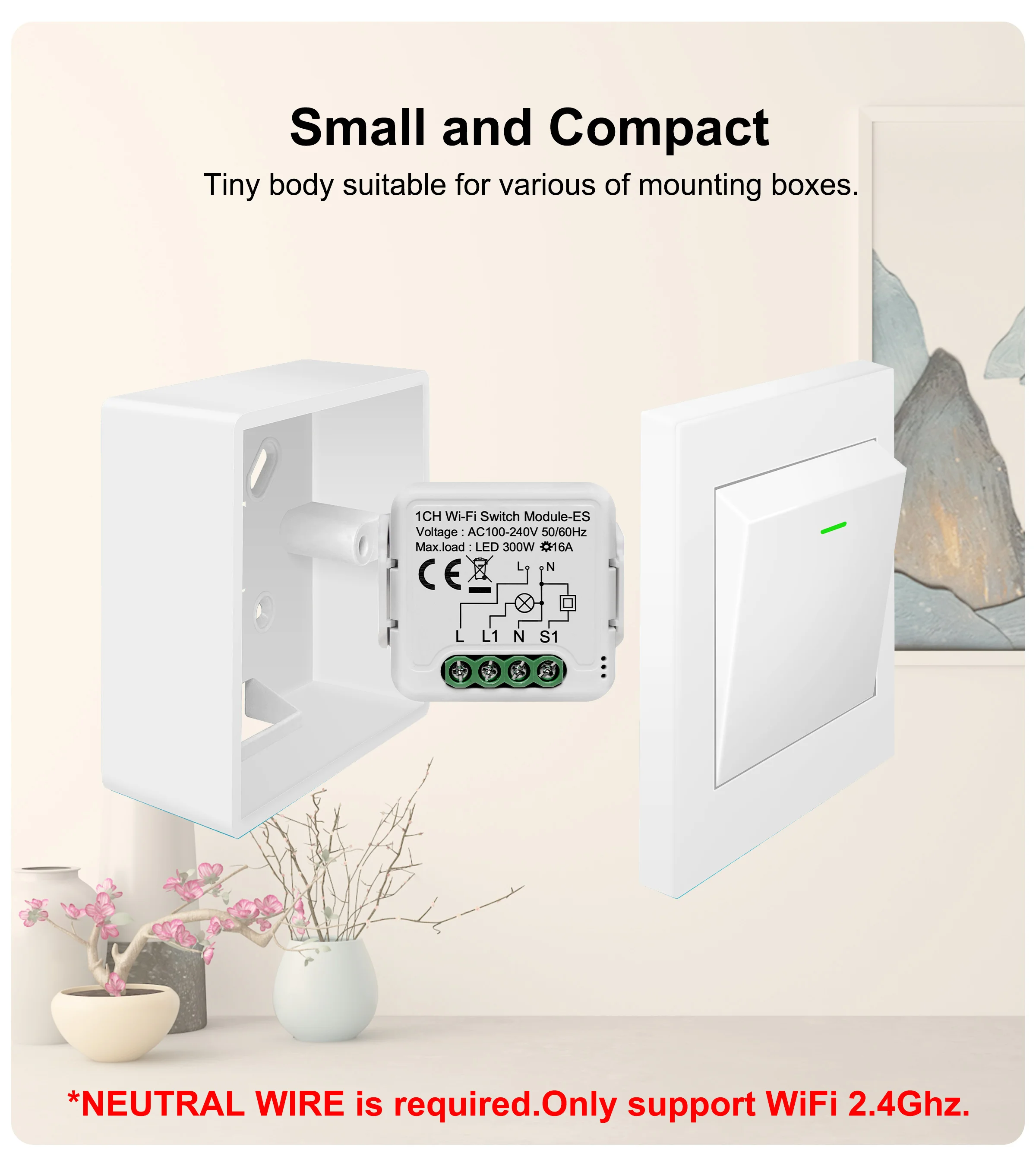

Mini Body: Designed 39.2*39.2*18mm mini body, which is working with most of amounting boxes, switches and wall sockets.
It is not only small, but also powerful. Maximum current reaches 16A, it can be used for most of home appliances and lightings.

Voice Control: After connecting the switch to the app, you can voice control the switch through Alexa or Google Assistant. Enjoy the hands-free when you are sitting at home or when you are on the go.

App Remote Control: You can control the switch anywhere and anytime according to your own requirement. Enjoy your convenient smart life via using the Smart Life app or Tuya app, whether you are on vacation/business or at home.

Energy Metering: The switch can record power usage in real time. You can view the monthly electricity consumption with the APP, which is convenient for you to make electricity consumption plans to reduce electricity bills.

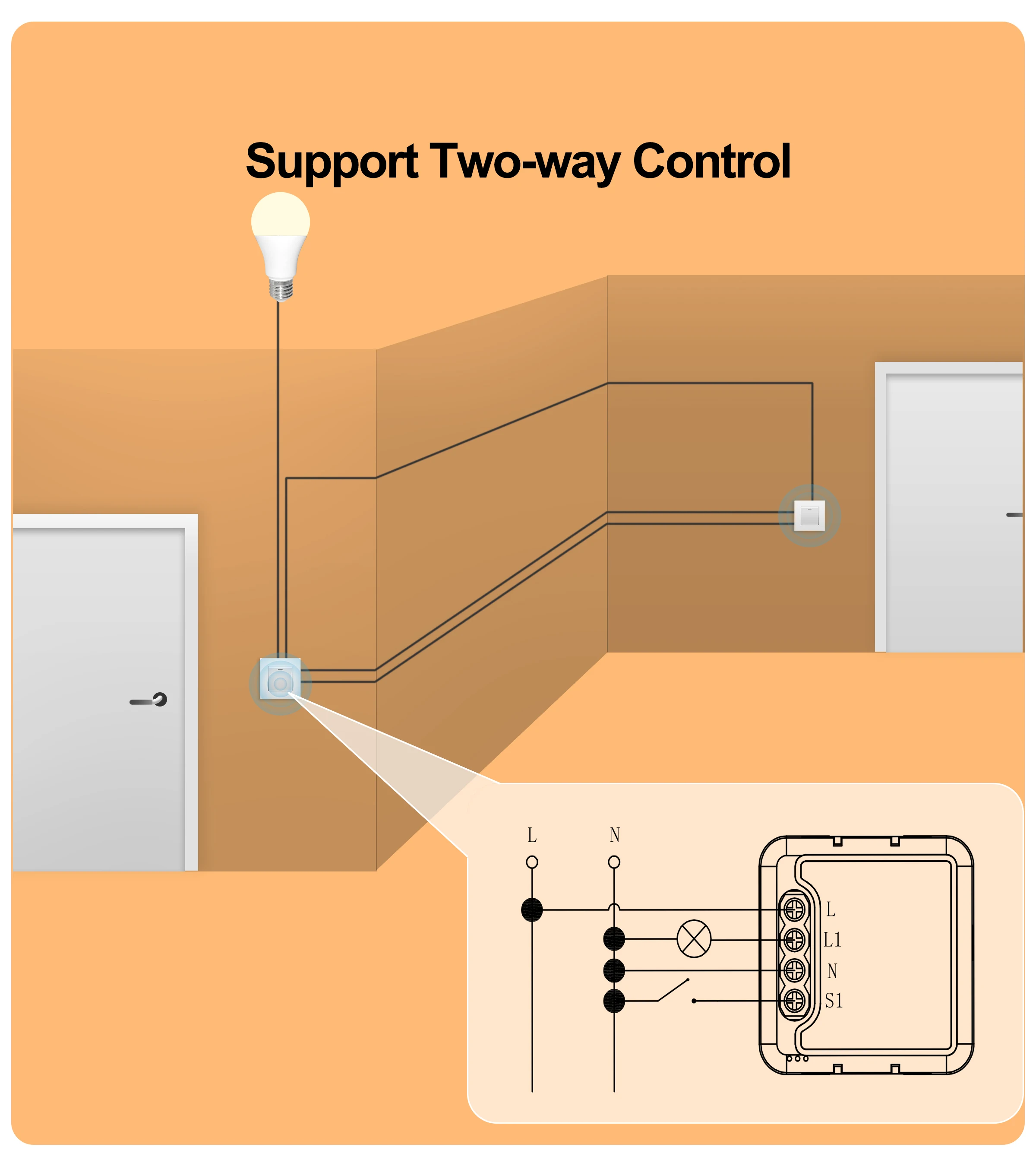

Support 2 Way Control: The switch supports not only single control, but also dual control.

Timing Schedule: You can set a timing schedule for the switch module according to your individual needs. Enjoy the convenient smart life without repeating on and off on the app or manually control.

Relay Status Setting:Never worry about power failure, you can set this switch to restore the state after power on.

Device Sharing: It is convenient to set a group and share the device to your family members or your friends, so that they can control the devices with you. You can enjoy the smart life with your families and friends.

Multi-protocol Matching:The switch module supports multi-protocol matching. It is more convenient and quickly to connect via Bluetooth.

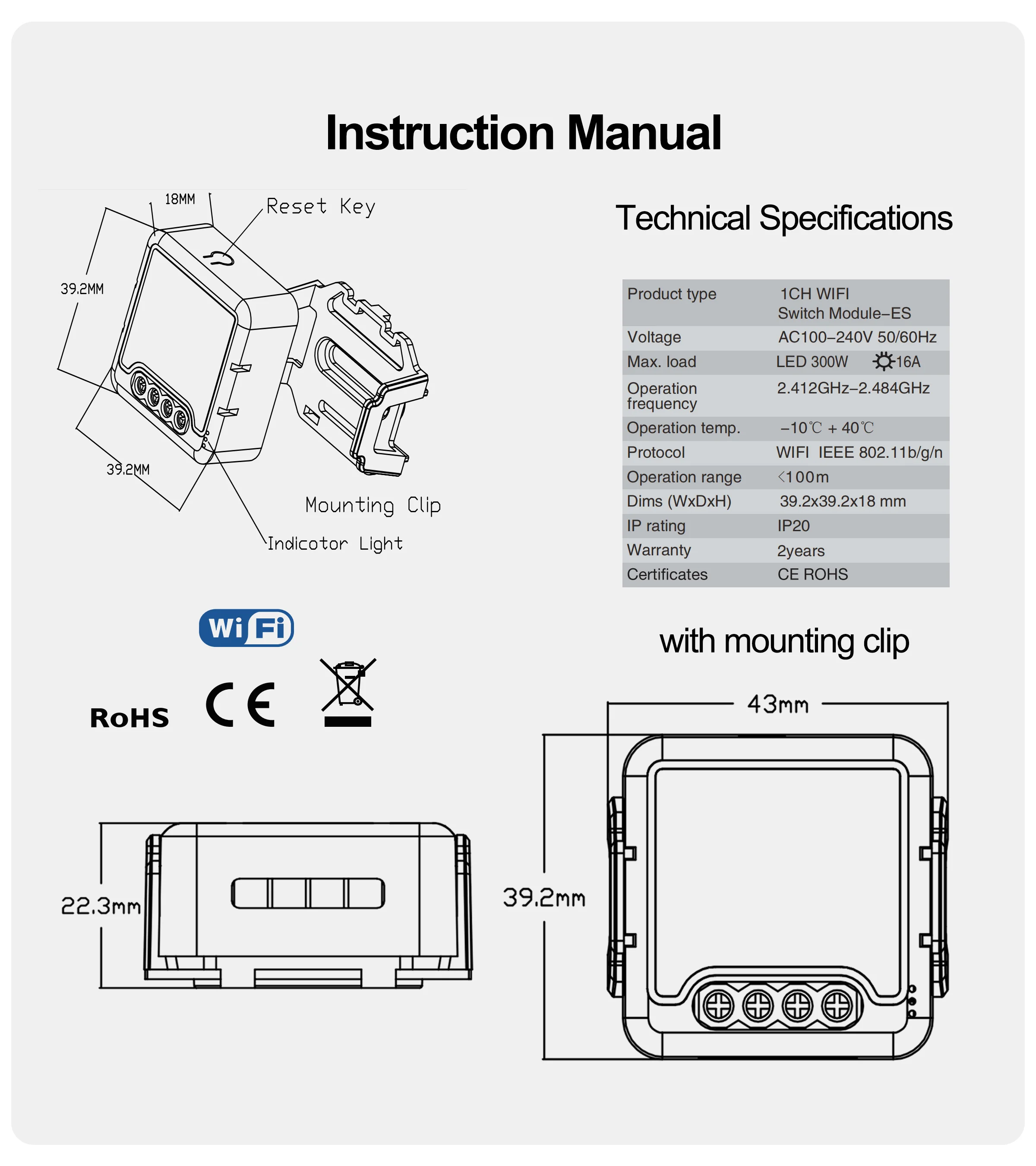

SPECIFICATION

Product type: Wi-Fi Switch Module-ES
Voltage:AC100-240V 50/60MHz
Rated Current: 16A
Power Monitor: Yes
Operation frequency: 2.412GHz-2.484GHz
Operation temp.: -10℃~+40℃
WiFi Protocol: IEEE 802.11b/g/n
Dims (WxDxH): 39.2x39.2x18 mm
IP rating: IP20
Warranty: 2 years
Certification: CE,ROHS
App: Smart Life, TuyaSmart
Voice Control: Alexa, Google Home Assistant, Yandex Alice

FAQ:

Q1: What should | do if I can’t configure the switch module?
a. Please check whether device is powered on.
b. Make sure your mobile and switch module are under the same 2.4 Ghz WIFI network.
C. Whether it’s in good internet conditions.
d. Make sure the password entered in App is correct.
e. Make sure the wiring is correct.

Q2: What happens if the WIFI goes off?
You can still control the device connected the switch module with your traditional switch and
once Wi-Fi is active again the device connected to module will connect automatically to your
Wi-Fi network.

Q3: What should I do if I change the WIFI network or change the password?
You have to re-connect our Wi-Fi switch module to the new Wi-Fi network accordingly as per
the App User Manual.

Q4: Does this DIY switch work with traditional wall socket?
Yes, it does.

Q5: Does it work with traditional touch switch?
No, it doesn’t. But it works with rocker switches and mechanical rocker switches.

Q6: How do I reset the device?
Long press the power button of the module for 5 seconds until the indicator light flash.
